Showcase Home » Can-Am » Renegade 500 EFI
Model Quick Search

$9,249.00

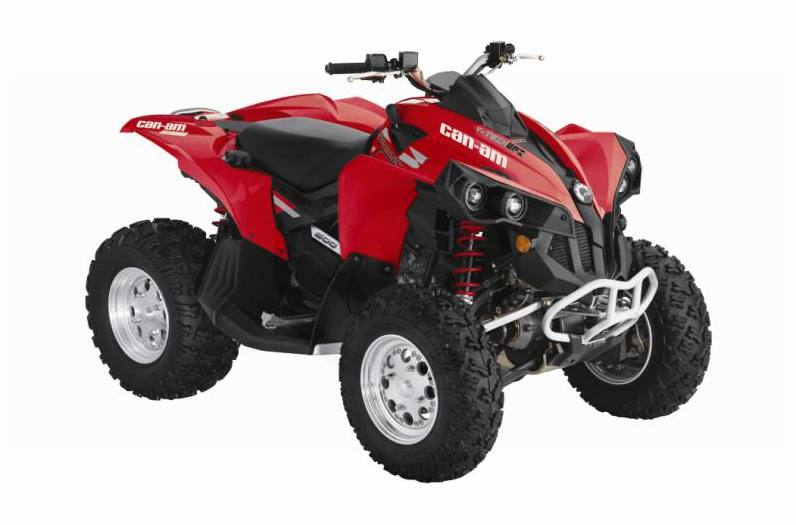

2009 Can-Am Renegade 500 EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Rotax V-Twin 499.6cc EFI engine
  • RS-Type TTI rear suspension
  • Visco-Lok 4x4 front differential
  • RS Type double A-arm front suspension
  • Multi-function guage
  • Front and rear brake controls
  • Motion control front and rear shocks
Engine
  • Type: 499.6cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
  • Bore & Stroke: 82 x 47 mm
  • Net Power: 42 Nm@ 6,000 RPM
  • EFI System / Carburetor: 46mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
  • Drive Train: Selectable 2w/4w shaft driven with Visco-lok front differential
Chassis
  • Frame: SST
  • Front Suspension Type: RS-Type Double A-arm, forged aluminum upper arm/ Motion Control Shocks
  • Travel: 8.5 in (203 mm)
  • Rear Suspension Type: RS-Type TTI independent, Motion Control shocks
  • Travel: 9 in (289 mm)
  • Front Brake: 2 hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: ITP Holeshot ATR 25 x 8 x 12 in. (635 x 203 x 305 mm)
  • Tires/Rear: ITP Holeshot ATR 25 x 10 x 12 in. (635 x 254 x 305 mm)
  • Wheels: Center Cast Aluminum
Dimensions
  • L x W x H (in): 86 x 46 x 45 in
  • L x W x H (mm): 2.184 x 1.168 x 1.143 mm
  • Wheelbase: 51 in (1.295 mm)
  • Seat Height: 34.5 in (877 mm)
  • Ground Clearance: 11 in (279 mm)
  • Dry Weight: 607 lbs (275 kg)
  • Towing Capacity: 1300 lbs (590 kg)
  • Rack Capacity: 35 lbs (16 kg)
  • Storage: Rear storage 1 US gal (3.7L)
  • Fuel Capacity: 5.3 US gal. (20 L)
Features
  • Instrumentation: speedometer, tachometer, odometer, trip and hourmeters, fuel, gear position, 4x4 indicator, diagnostics, auto shut off.
  • Anti-Theft: D.E.S.S. (Digital Encoded Security System)
  • Electrical: Prewired for winch
  • Lighting: 4 fender mounted Projector Beam headlamps (60W) with tail light/brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Color(s) available: Yellow, Viper Red
Warranty
  • Basic: 6 months limited factory warranty
  • Extended: B.E.S.T. available from 12 to 36 months
Other features
  • Electronic anti-theft system (D.E.S.S.)
  • Center-cast aluminum wheels with ITP Holeshot ATR sport radial tires
  • Four 60W projector beam lights
  • Full floorboards with kick-up aluminum pegs

Specifications

Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension RS-Type Double A-arm, forged aluminum upper arm/ Motion Control Shocks
Front Travel 8.5 in. (203 mm)
Front Brake Type 2 hydraulic discs
Front Tires ITP Holeshot ATR 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension RS-Type TTI independent, Motion Control shocks
Rear Travel 9 in. (289 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires ITP Holeshot ATR 25 x 10 x 12 in. (635 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 607 lbs (275 kg)
Front Rack Capacity 35 lbs (16 kg)
Rear Rack Capacity 35 lbs (16 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal. (20 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 86 x 46 x 45 in. (2.184 x 1.168 x 1.143 mm)
Wheelbase 51 in. (1.295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 4 fender mounted Projector Beam headlamps (60W) with tail light/brake light
Colors Yellow, Viper Red
Warranty 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months

Compare Models

 Print








Year 2009
Manufacturer Can-Am
Model Renegade 500 EFI
Style Off Road
MSRP* $9,249.00
Chassis
Front Suspension RS-Type Double A-arm, forged aluminum upper arm/ Motion Control Shocks
Front Travel 8.5 in. (203 mm)
Front Brake Type 2 hydraulic discs
Front Tires ITP Holeshot ATR 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension RS-Type TTI independent, Motion Control shocks
Rear Travel 9 in. (289 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires ITP Holeshot ATR 25 x 10 x 12 in. (635 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 607 lbs (275 kg)
Front Rack Capacity 35 lbs (16 kg)
Rear Rack Capacity 35 lbs (16 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal. (20 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 86 x 46 x 45 in. (2.184 x 1.168 x 1.143 mm)
Wheelbase 51 in. (1.295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 4 fender mounted Projector Beam headlamps (60W) with tail light/brake light
Colors Yellow, Viper Red
Warranty 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months
