$10,349.00

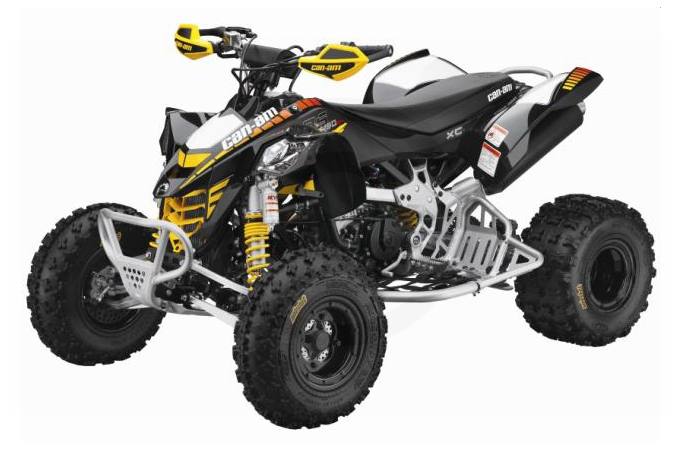

2009 Can-Am DS 450 EFI X xc
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • R-type forged aluminum double A-arms with adjustable caster
  • KYB HPG C36 aluminum piggyback front shocks with dual-speed compression, rebound and preload adjustments and 9.6" (245 mm) of travel
  • KYB HPG C40 aluminum piggyback rear shock with dual-speed compression, rebound and preload adjustments and 10.5" (267 mm) of travel
  • 7.5" (190 mm) factory-set ride height (175-lb rider)
  • Adjustable-width hollow rear axle (from 46" [1.17 m] to 50" [1.27 m] by increments of 0.5" [12.7 mm] per spacer)
  • Extra-strength extended 1" (25.4 mm) steering stem with anti-vibe mounts
  • 21x7-10 ITP Holeshot GNCC 6-ply front tires
  • 20x10-9 ITP Holeshot GNCC 6-ply rear tires
  • Black aluminum ITP 10x5 T-9 Trac-lock front wheels
  • Black aluminum ITP 9x8 T-9 Trac-lock rear wheels
  • 3-mm full aluminum chassis skid plate
  • 5-mm full aluminum swing arm skid plate
  • Aluminum nerf bars with removable heel guards and side extensions
  • Aluminum 6061-T6 taper-profile handlebar with square pad
  • Aluminum front bumper, number plate ready
  • Handlebar wind deflectors
  • X package seat cover
  • X xc race graphics
Engine
  • Type: 449.3cc, single-cylinder, liquid-cooled, DOHC 4-valve head with high-flow “Durchzugskraft” design, 38mm intake valve, 31 mm Nimonic - alloy
  • Bore & Stroke: 97 x 60.8 mm
  • EFI System / Carburetor: 46 mm Throttle Body, 16 bit / 32 MHz CPU
  • Starting System: Electric
  • Transmission: 5-speed manual / Heavy-duty clutch, 9 friction plates with DirectLink mechanism
  • Drive Train: 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Chassis
  • Frame: ALTEC dual-pyramidal aluminum
  • Front Suspension Type: R-Type forged aluminum double A-arm KYB HPG piggyback shocks with compression, rebound and preload adjustments
  • Travel: 9.5 in (241 mm)
  • Rear Suspension Type: R-Type cast aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
  • Travel: 10.5 in (267 mm)
  • Front Brake: Dual 182mm discs with inverted twin-piston calipers
  • Rear Brake: 198mm rotor with single piston caliper
  • Tires/Front: ITP Holeshot GNCC 21 x 7R-10 in (533 x 178R x 254 mm)
  • Tires/Rear: ITP Holeshot GNCC 20 x 10R-9 in (508 x 254R-229 mm)
  • Wheels: Black aluminum ITP Trac-lock
Dimensions
  • L x W x H (in): 72.4 x 46 x 41.9 in
  • L x W x H (mm): 1.839 x 1.168 x 1.064 mm
  • Wheelbase: 50 in (1.267 mm)
  • Seat Height: 33 in (831 mm)
  • Ground Clearance: 9 in (229 mm)
  • Dry Weight: 345 lbs (156 kg)
  • Fuel Capacity: 3 US gal. (11.5 L)
Other Features
  • Instrumentation: Low fuel, check engine, neutral
  • Lighting: Dual removable headlights (35W)
  • Color(s) available: Black with X xc race graphics
X xc Package
  • R-type forged aluminum double A-arms with adjustable caster
  • KYB HPG C36 aluminum piggyback front shocks with dual-speed compression, rebound and preload adjustments and 9.6” (245 mm) of travel
  • KYB HPG C40 aluminum piggyback rear shock with dual-speed compression, rebound and preload adjustments and 10.5” (267 mm) of travel
  • 7.5” (190 mm) factory-set ride height (175-lb rider)
  • Adjustable-width hollow rear axle (from 46” [1.17 m] to 50” [1.27 m] by increments of 0.5” [12.7 mm] per spacer)
  • Extra-strength extended 1” (25.4 mm) steering stem with anti-vibe mounts
  • 21x7-10 ITP Holeshot GNCC 6-ply front tires
  • 20x10-9 ITP Holeshot GNCC 6-ply rear tires
  • Black aluminum ITP 10x5 T-9 Trac-lock front wheels
  • Black aluminum ITP 9x8 T-9 Trac-lock rear wheels
  • 3-mm full aluminum chassis skid plate
  • 5-mm full aluminum swing arm skid plate
  • Aluminum nerf bars with removable heel guards and side extensions
  • Aluminum 6061-T6 taper-profile handlebar with square pad
  • Aluminum front bumper, number plate ready
  • Handlebar wind deflectors
  • X package seat cover
  • X xc race graphics

Specifications

Engine
Engine Type DOHC 4-valve head with high-flow “Durchzugskraft” design, 38mm intake valve, 31 mm Nimonic - alloy
Displacement 449.3 cc
Bore x Stroke 97 x 60.8 mm
Cylinders Single Cylinder
Engine Cooling Liquid Cooled
Fuel System 46 mm Throttle Body, 16 bit / 32 MHz CPU
Starting System Electric
Chassis
Front Suspension R-Type forged aluminum double A-arm KYB HPG piggyback shocks with compression, rebound and preload adjustments
Front Travel 9.5 in. (241 mm)
Front Brake Type Dual 182mm discs with inverted twin-piston calipers
Front Tires ITP Holeshot GNCC 21 x 7R-10 in. (533 x 178R x 254 mm)
Rear Suspension R-Type cast aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
Rear Travel 10.5 in. (267 mm)
Rear Brake Type 198mm rotor with single piston caliper
Rear Tires ITP Holeshot GNCC 20 x 10R-9 in. (508 x 254R-229 mm)
Frame ALTEC dual-pyramidal aluminum
Dimensions/Capacities
Dry Weight 345 lbs. (156 kg)
Fuel Capacity 3 gal. (11.5 l)
Ground Clearance 9 in. (229 mm)
Machine Dimensions (LxWxH) 72.4 x 46 x 41.9 in. (1.839 x 1.168 x 1.064 mm)
Wheelbase 50 in. (1.267 mm)
Drive Train
Drive Train 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Transmission 5-speed manual / Heavy-duty clutch, 9 friction plates with DirectLink mechanism
General
Lighting Dual removable headlights (35W)
Colors Black with X xc race graphics

Compare Models

 Print








Year 2009
Manufacturer Can-Am
Model DS 450 EFI X xc
Style Off Road
MSRP* $10,349.00
Chassis
Front Suspension R-Type forged aluminum double A-arm KYB HPG piggyback shocks with compression, rebound and preload adjustments
Front Travel 9.5 in. (241 mm)
Front Brake Type Dual 182mm discs with inverted twin-piston calipers
Front Tires ITP Holeshot GNCC 21 x 7R-10 in. (533 x 178R x 254 mm)
Rear Suspension R-Type cast aluminum swingarm Chromoly hollow rear axle KYB HPG piggyback shock with compression, rebound and preload adjustments
Rear Travel 10.5 in. (267 mm)
Rear Brake Type 198mm rotor with single piston caliper
Rear Tires ITP Holeshot GNCC 20 x 10R-9 in. (508 x 254R-229 mm)
Frame ALTEC dual-pyramidal aluminum
Dimensions/Capacities
Dry Weight 345 lbs. (156 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 3 gal. (11.5 l)
Ground Clearance 9 in. (229 mm)
Machine Dimensions (LxWxH) 72.4 x 46 x 41.9 in. (1.839 x 1.168 x 1.064 mm)
Wheelbase 50 in. (1.267 mm)
Drive Train
Drive Train 520 O-ring high capacity chain, aluminum sproket hub, aluminum sprocket, rigid axle
Final Drive
Transmission 5-speed manual / Heavy-duty clutch, 9 friction plates with DirectLink mechanism
Engine
Engine Type DOHC 4-valve head with high-flow “Durchzugskraft” design, 38mm intake valve, 31 mm Nimonic - alloy
Displacement 449.3 cc
Bore x Stroke 97 x 60.8 mm
Cylinders Single Cylinder
Engine Cooling Liquid Cooled
Fuel System 46 mm Throttle Body, 16 bit / 32 MHz CPU
Starting System Electric
Alternator
General
Speedometer
Tachometer
Odometer
Lighting Dual removable headlights (35W)
Colors Black with X xc race graphics
Warranty

Current Promotions

There are currently no promotions available for this product.
